Discretely Assembled Voltage Amplifier

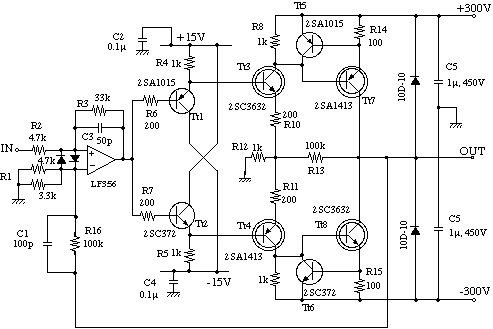

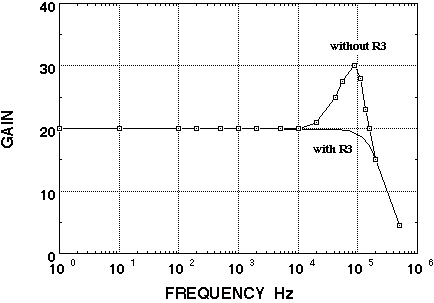

Input signal to the op-amp (LF356) is amplified by the push-pull transistors up to +/- 300 V. Complimentary transistors should be choosen for Tr1 ~ Tr 8. For high voltage bipolar transistors (2SC3632 and 2SA1015, complementary), consult with NEC datasheet (Bipolar --> Power Transistor --> ...)
