Fiber Optic Endoscope with an Optically Modulated Micro Mirror

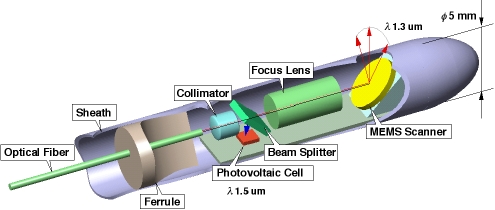

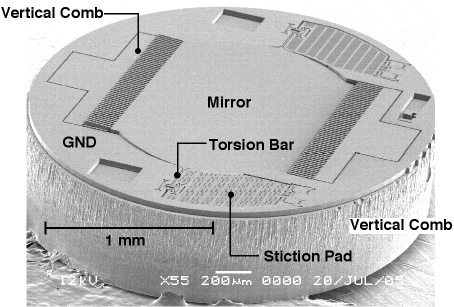

We have developed a new SiP (system in package) style optical MEMS (microelectromechancal system) component for fiber optic endoscope that operates without using external power supply. The endoscope sensor head (5 mm in outer diameter) attached at the end of an optical fiber is designed for the use of in vivo medical diagnosis such as gastrointestinal tact or vascular vein monitor by using an infrared probe light at a 1.3-micron-wavelength. Another infrared light of at a 1.5-micron-wavelength is used in the identical optics in a WDM (wavelength division multiplex) manner to generate the drive voltage (of up to 5 V) in the package by using a collocated photovoltaic cell. Modulation of the MEMS scanner is demonstrated using the optical modulation, by which the risk of electrocution or electromagnetic interference is avoided.

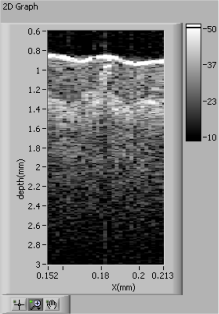

生体試料の観察には、波長1.3μmの赤外光を用いています。光ファイバのもう一端に設けたOCT光学系(Optical Coherent Tomography)によって、最大深さ1mm程度までの断層観察が可能です。

Using the OCT system (Optical Coherent Tomography) located at the other end of the fiber, bio-tissue of 1 mm in depth could be optically observed.


  1. Changho Chong, Keiji Isamoto, Jonathan Eavns, and Hiroshi Toshiyoshi, "Optical-modulated MEMS scanning endoscope for optical coherent tomogrpahy," OSA Biomedical Optics Topical Meeting, March 22, 2006, Fort Lauderdale, FL, USA.
  2. 光で制御する医療用プローブを開発 (共同研究先 santec株式会社 プレスリリース記事)
  3. Article in the SPIE Newsroom
  4. See also the self-assembling technique of the scanner.

kastlogo.png  本プロジェクトは、2005年4月から2008年3月にかけて、財団法人神奈川科学技術アカデミーの3年間プロジェクトとして運営致しました。また、2008年4月以降は展開研究としてsantec株式会社と共同研究を継続しています。
